Model #: 9006200
The new AT5K-HP 3500 watt antenna tuner covers 160m to 6m with a power rating of up to 3500 watts PEP. The AT5K-HP is for Hams who already have their own power metering systems, but want the power handling of the AT5K.
|"Worth every penny. 5/5 After having some problems with a different legal limit tuner, I called Palstar looking for a solution. Paul and Eva were eager to address
my concerns. After a brief discussion it was decided. For my station, I run external transformer baluns of various ratios to folded dipoles. DX Engineering 1:1, 6:1, 9:1 and 12:1 for
various antennas (60 meters through 6) and have a Daiwa CN-801 SWR/power meter. As such the AT5K-HP was suggested. In dealing with Palstar directly, I must say that their service was
really top notch and they promised to send my product right out immediately. True to their word, the tuner arrived days before I was expecting|
- N7FSM" Read more on eHam.net...
The American made AT5K-HP is a unique high-power tuner in the American Ham tradition. The AT5K tuner was nick-named the "Rock Crusher" and is one of the tuners of choice among Hams who demand the best and most robust antenna tuner on the market.

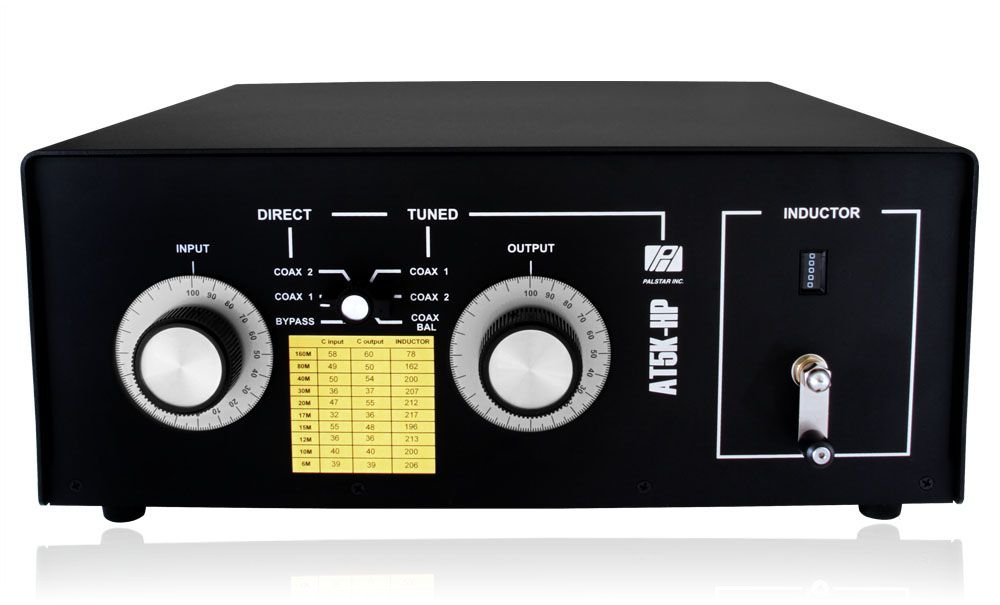

The AT5K-HP features a 6 position high power ceramic antenna selector switch.

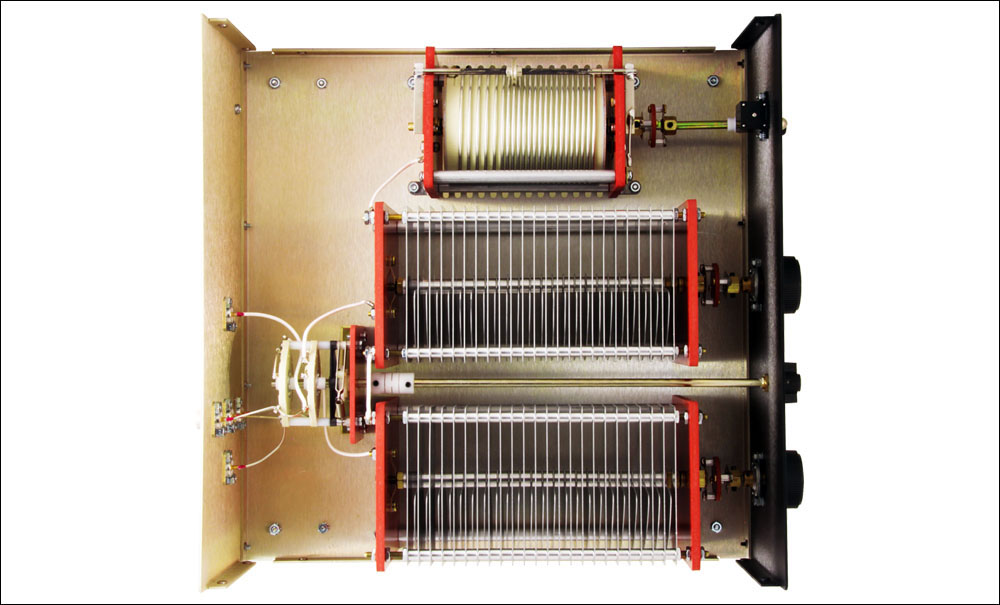

Inside the AT5K-HP you'll find massive custom large-plate (600 pF) variable capacitors rated at 6 kV. This high capacitance means unsurpassed performance on 160 Meters, while specially designed non-metallic end plates allow a minimum capacitance of only 20 pF for 6 Meter tuning, unusually low for a variable capacitor this large. Equally massive is the 28 µH, 10 Amp, 7 kV, Ceramic-body inductor, which is wound with 10 Ga. plated copper wire with silver-plated wheel shaft and contact wheel.
Add 11 Ga. (.090" thick) gold iridite-treated aluminum metalwork and durable powder coated finish on the front panel and top cover, and you have the AT5K-HP, Palstar's top of the line premium quality antenna tuner.
