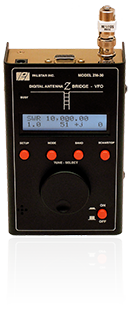

ZM30

Display: Blue backlit digital display 16 x 2 LCD
Signal generator: Precision tunable DDS signal generator, processor controlled in 10Hz steps
Display frequencies: SWR & R+/-JX from 1 MHz - 30 MHz in 10Hz Steps
Source Impedance: 50 Ohms
Special purity: Harmonics down >-35 dB beyond 30 MHz
Step size: User configurable increments of 10 Hz, 100 Hz, 1 kHz, 110 kHz, and 100 kHz
Usable measurement range: SWR: 1.0 - 9.9
Impedance approx. 5 - 600 Ohms
RF Output: 2 Volts p-p (typical)
Connectors: 2.1 mm coaxial power plug (center pin positive)

RF Out: BNC

RS232 (DB9F)
Serial port
Environmental: Temperature:
0-70 Celsius
Humidity:
0-100% RH
Power supply: 8 AA cells (batteries not included) or 200 ma wall adapter
Firmware: Serial port for field upgradeable software from palstar.com
Chassis: .090 ga. aluminium iridite coated
Front cover: .090 ga. aluminium powder coated
Dimensions: 3 3/4" wide x 6 1/4" high x 2 1/2" deep
Shipping weight: 3 lbs

Warranty: One year

Firmware Download and Resources
