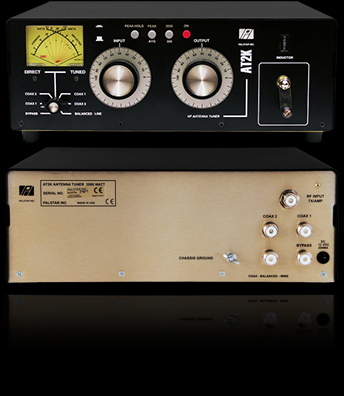

AT2K

Output Power: 2000 Watts PEP
HF Bands: 160m to 6m (assuming resistive load)
Tuning: Three controls
Antenna switching: 6 position mode switch for multiple antennas
Capacitor: low minimum custom variable capacitor; 15pF - 400pF@4.5 kV
Roller inductor: silver-plated inductor wheel shaft and contact wheel on ceramic body
Impedance: matching range 15 Ohms to 1500 Ohms
Metering: Active crossneedle Peak/Peak Hold with backlighting
Meter power range: 0-300 Watts/
0-3000 Watts
Balun: Optional external 1:1 or 4:1 current
Chassis: .090 ga. aluminium gold iridite coated
Top cover: .090 ga. aluminium powder coated
Front cover: .090 ga. aluminium powder coated
Dimensions: 14.5" wide x 5" high x 13.5" deep
Shipping weight: 14 lbs

Warranty: One year
