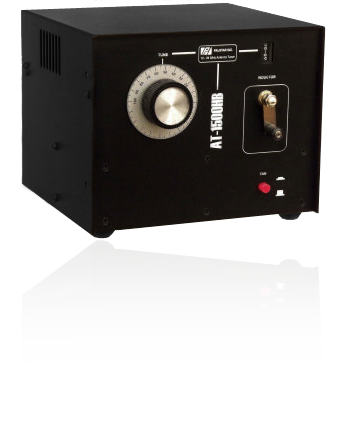

AT1500HB
| Output Power: | 1500 Watts single tone carrier; 100% duty cycle with fan on |
| Frequency Range: | 6Mhz to 54Mhz |
| Tuning: | Two controls |
| Connectors: | SO329 or Optional N type |
| Chassis: | .090 ga. aluminium iridite coated |
| Top cover: | .090 ga. aluminium powder coated |
| Front cover: | .090 ga. aluminium powder coated |
| Dimensions: | 9 1/4" wide x 8" high x 9 1/2" deep |
| Shipping weight: | 10 lbs |
| Warranty: | One year |
